Luftfjæring HD Dyna Arnott Fox MC-3103 C

PRODUCT FEATURES

• 2 chrome FOX^® shock absorbers
• Goodyear^® air spring sleeves

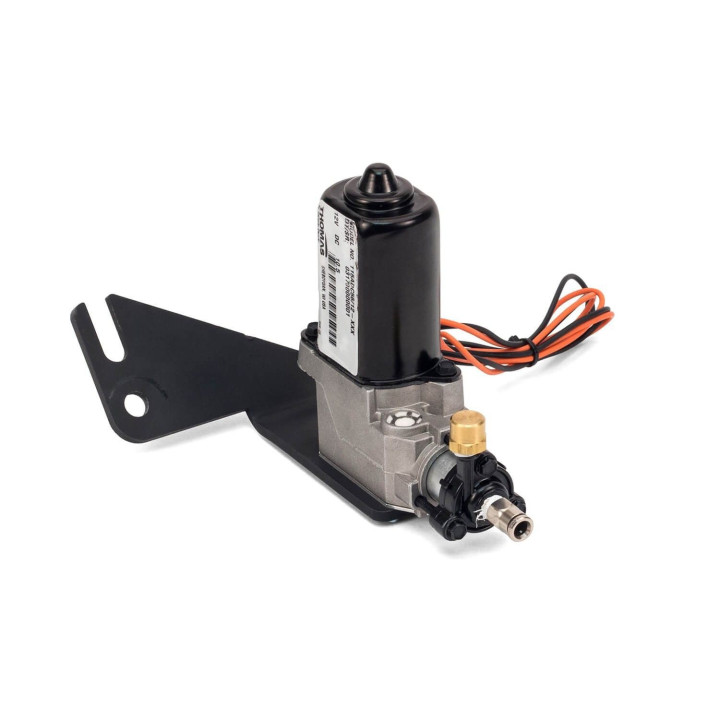

• Thomas high output compressor w/application-specific bracket
• 6061-T6 billet aluminum construction
• Handlebar-mounted inflation switch
• Engineered for motorcycles
• Even fully deflated, fender won’t touch tire
• Made & tested in USA

INCLUDES

• 2 chrome FOX shock absorbers with multi-ply Goodyear air spring sleeves
• Thomas high output compressor w/application-specific bracket
• Chrome handlebar-mounted inflation switch
• Air distribution valve w/air speed control muffler
• Fused wiring harness & relay assembly
• Mounting bracket
• All necessary mounting hardware
• Nylon air line tubing
• Cable ties
• Detailed installation manual

Arnott’s new Ultimate Ride Air Suspension Kit for Harley-Davidson^® 2008-2017 Dyna^® Models has been custom designed to provide the rider with superior control, ride comfort, and height adjustability. The kit, featuring Arnott’s TruAIR^® Technology, includes a rugged air spring sleeve.

At the core of this system are two custom nitrogen-charged FOX^® shock absorbers. Then, using a patent-pending design, Arnott adds a rugged Goodyear^® air spring, ensuring superior comfort, ride quality, and durability. Arnott pairs your shocks with a small but powerful compressor, application-specific mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation including a detailed installation manual, fused wiring harness, and relay assembly, handlebar-mounted inflation switch, all necessary tubing, cable ties, fittings, bolt covers, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility.

INSTALLATION RESOURCES

PDF Installation Manual

Installation Manual (w/Google Translate)

TUV CERTIFICATES

21-9258

SPECIFICATIONS

Ride Series: Ultimate Ride

Shock Color: Chrome

Optional Rebound Adjustment: No

Size: Standard

Minimum Length: 246.38 mm

Maximum Length: 330.2 mm

Travel Length: 83.82 mm

Air Spring: Multi-Ply Goodyear

Shock Damper: FOX

Shock Construction: All CNC Billet Aluminum Components

Ride Comparison: Comfortable/Luxurious

Reduces Painful Bottoming: Yes

Bottoming Bumper: Urethane

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes
