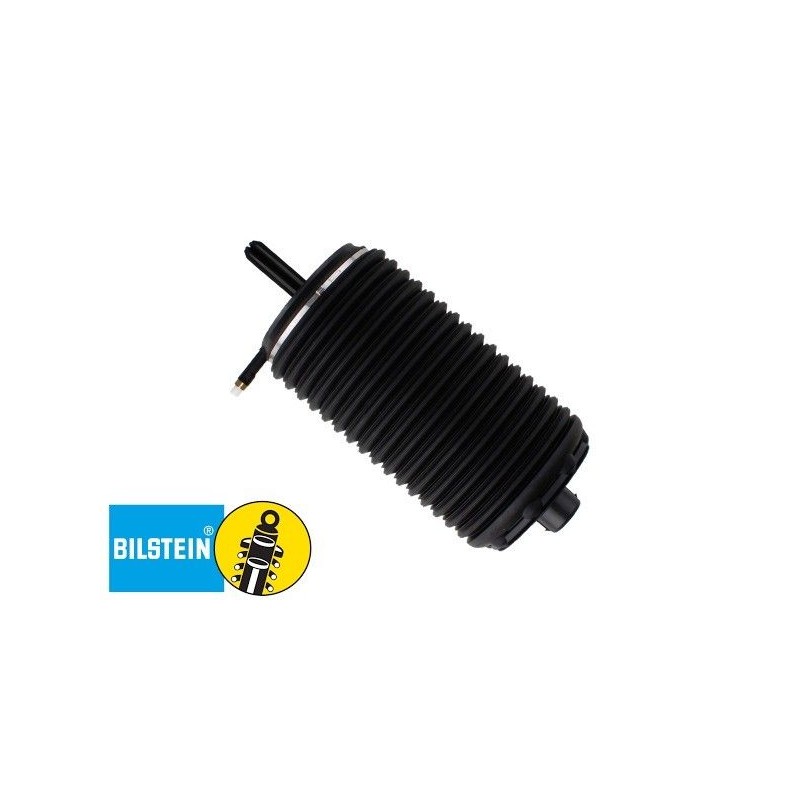

Luftbälg vä bak Bilstein 40-249841 Porsche
14 dagars returrätt
Preserving the original driving behaviour should be the most important aspect when replacing suspension components.
For the replacement of air springs there is no better than BILSTEIN.
The BILSTEIN B3 air spring provides a perfect driving experience under high load, due to the constant counter-pressure in the bellows of the air spring.
This is an optimum OE replacement for vehicles in which the air spring and shock absorber are installed as separate units.
Enclosed installation instructions of the manufacturer must be observed!
It can be installed in the following vehicles:
Porsche Macan 95B
Original spare part numbers:
95B616001C ; 95B 616 001 C
95B616001A ; 95B 616 001 A
Scope of delivery:
- air spring
The vehicle suspension system is based on a combination of electronic level control and nitrogen 5 or CO2 filled air springs.
After replacement of any spare parts, such as compressor, air spring, valve and / or strut, the output pressure in the system MUST have 17 bar.
A compressor can only partially compensate for the pressure difference.
You MUST follow the appropriate car manufacturer's installation instructions.
If the appropriate car manufacturer's installation instructions and specifications are not followed correctly, your system will continue to show errors or will malfunction.
If our parts are damaged in the process if will void any warranty or guarantee.
Normally the complete emptying of the system is required under car manufacturer's installation instructions .
After replacement of the corresponding spare part, the system MUST be recharged with CO2 or nitrogen 5 in accordance with the requirements of the car manufacturer.
This can only be done with appropriate software and appropriate special tools.
After this procedure, you can start further steps, such as calibration of the vehicle's suspension leveling control system.
- Never lower the vehicle with empty Air Spring Bags. Make sure Air Spring Bellows are pressurized to 5bar (72PSI) Before Lowering the vehicle.
Not doing so can cause an accident.
-Check air suspension system for leaks & Verify after repair if the system is completely sealed.
The easiest way to check for leaks is by parking the vehicle overnight.
Wait for the automatic readjustment of the system, if your vehicle has this feature.
Measure your vehicle from the ground to the lower edge of fenders on all 4 corners and note.
The next day, check and compare these heights. Even a small deviation of the distances leads to permanent damage to the compressor and the valves.
-Made in Germany
-Much cheaper than authorized repair
-We as German provider have the European returns policy
-We also have a 2 years warranty
-Worldwide express delivery is our standard
-In Europe we have the longest experience with the topic of air suspension for automobiles in the after market.
