Arnott Fox luftfjädringssystem ställbar returdämpning MC-3110

16 999 kr
13 599 kr Spara 20%
Finns för omgående leverans från vårt lager i Stockholm

Passa på! Köp en Arnott/Fox Kit MC-3110 för endast 17 999 kr och få en Lufttrycksmätare K2635 (värde 1 800 kr) på köpet!

Kvantitet
I Lager

 Customer ratings and reviews
 (5/5)  - 1 rating(s) - 1 review(s)
View distribution

Luftfjädringssystem med ställbar returdämpning MC-3110



Arnott vs. Other Manufacturers (Click here)



Arnott’s new rebound adjustable Ultimate Ride Air Suspension Kit for Harley-Davidson® V-Rod® models has been custom designed to provide the rider with superior control, ride comfort, and height adjustability. The kit, featuring Arnott’s TruAIR® Technology, includes a rugged air spring sleeve.

At the core of this system are two custom nitrogen-charged FOX® shock absorbers with rebound control knobs. Then, using a patent-pending design, Arnott adds a rugged Goodyear® air spring, ensuring superior comfort, ride quality, and durability. Arnott pairs your shocks with a small but powerful compressor, application-specific mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation including a detailed installation manual, fused wiring harness, and relay assembly, handlebar-mounted inflation switch, all necessary tubing, cable ties, fittings, bolt covers, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility.



PRODUCT FEATURES

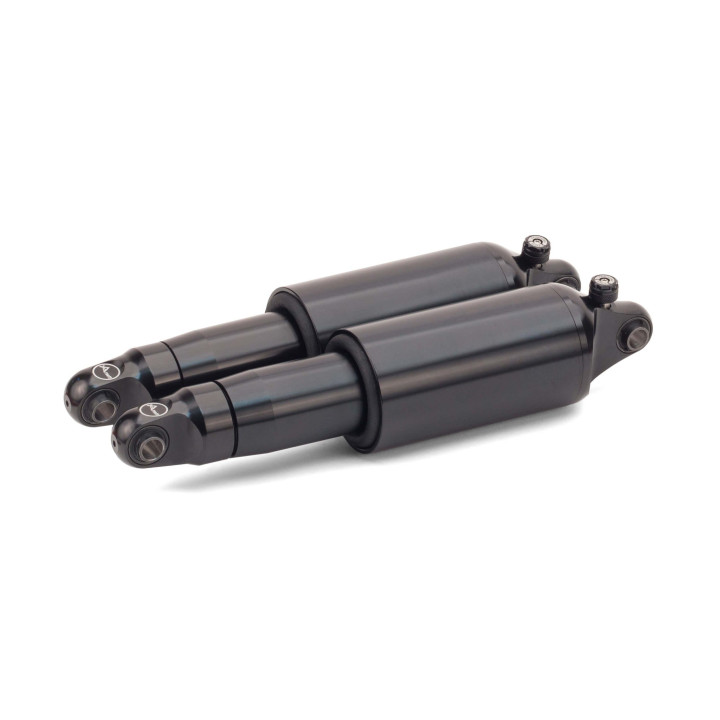

2 black FOX® shock absorbers

Goodyear® air spring sleeves

ViAIR high output compressor w/application-specific bracket

6061-T6 billet aluminum construction

Handlebar-mounted inflation switch

Engineered for motorcycles

Even fully deflated, fender won’t touch tire

Made & tested in USA

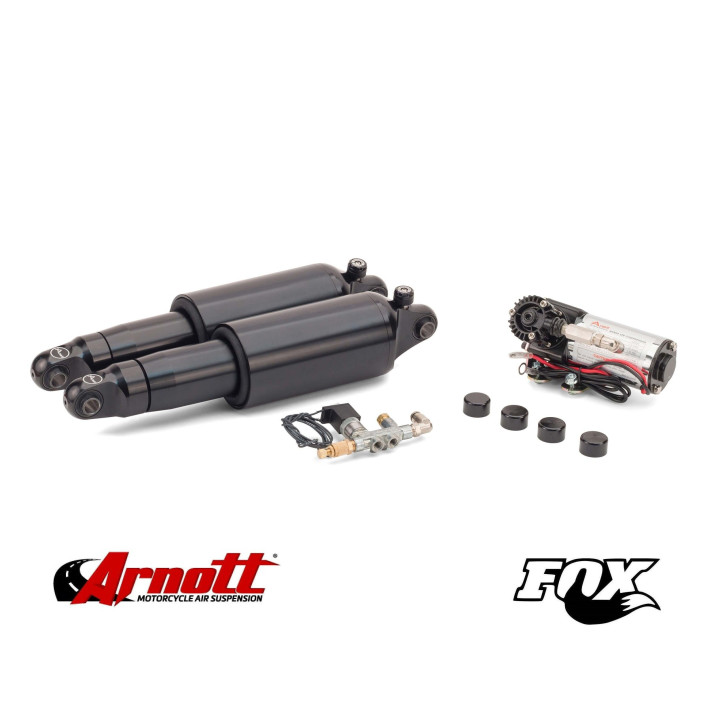

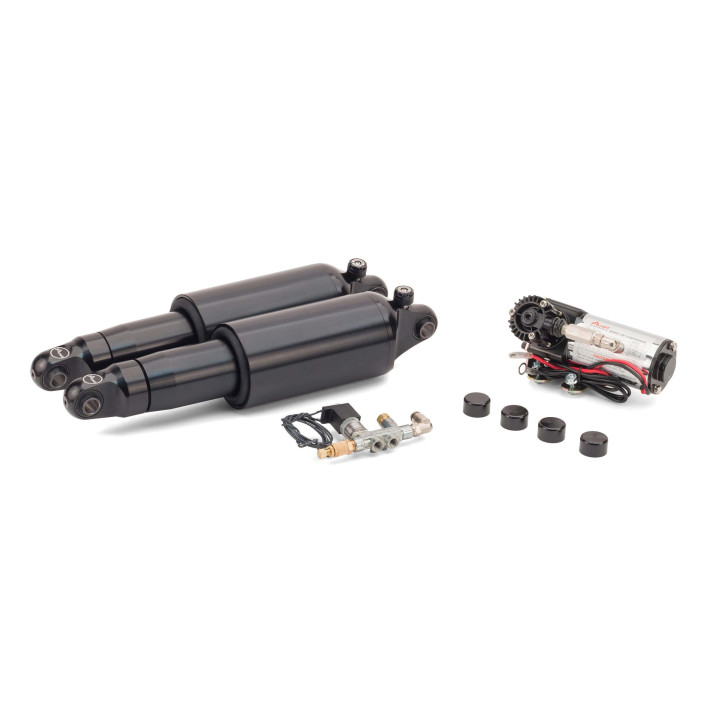

INCLUDES

2 black FOX shock absorbers w/rebound adjustment & multi-ply Goodyear air spring sleeves

ViAIR high output compressor w/application-specific bracket

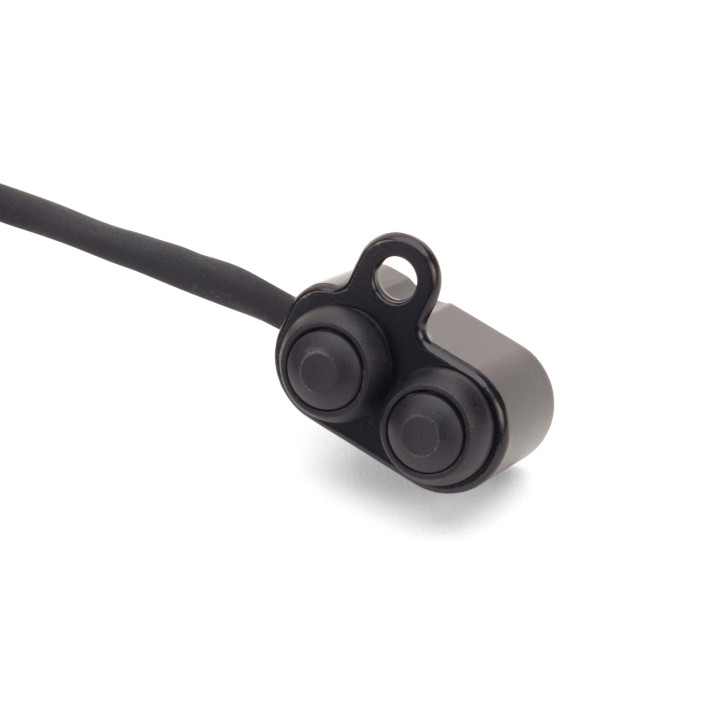

Black handlebar-mounted inflation switch

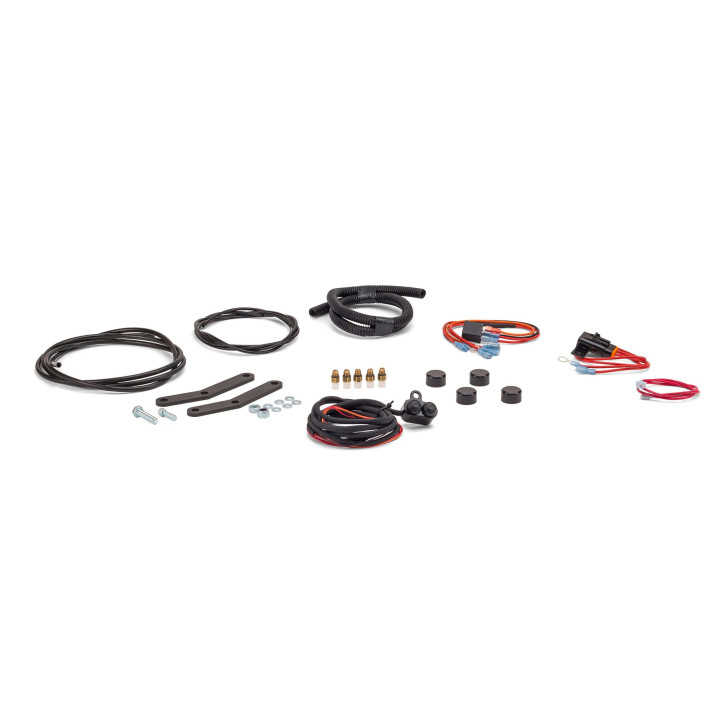

Air distribution valve w/air speed control muffler

Fused wiring harness & relay assembly

Mounting bracket

All necessary mounting hardware

Nylon air line tubing

Cable ties

Detailed installation manual



INSTALLATION RESOURCES

PDF Installation Manual

Installation Manual (w/Google Translate)



TUV CERTIFICATES

21-10830

21-10831



SPECIFICATIONS

Ride Series: Ultimate Ride

Shock Color: Black

Optional Rebound Adjustment: Yes

Size: Standard

Minimum Length: 266.7 mm

Maximum Length: 330.2 mm

Travel Length: 63.5 mm

Air Spring: Multi-Ply Goodyear

Shock Damper: FOX

Shock Construction: All CNC Billet Aluminum Components

Ride Comparison: Comfortable/Luxurious

Reduces Painful Bottoming: Yes

Bottoming Bumper: Urethane

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes

MC3110
