Honda Cruiser Ultimate Ride Kit Arnott Fox MC-2970 B

PDF Installation Manual

Installation Manual (w/Google Translate)

Arnott’s new adjustable Ultimate Ride Air Suspension Kit for the Honda^® VT1300 Series has been custom designed to replace the original rear shock. arnott’s patents-pending kit offers TruAIR^® Technology with a rugged air spring sleeve combined with a custom-tuned FOX^® shock. arnott’s Air Shock provides the rider superior control, ride comfort and much greater height adjustability.

• Black FOX^® shock absorber
• Goodyear^® air spring sleeves
• ViAIR high output compressor w/application-specific bracket
• 6061-T6 billet aluminum construction
• Black handlebar-mounted inflation switch
• Even fully deflated, fender won’t touch tire
• Made & tested in USA

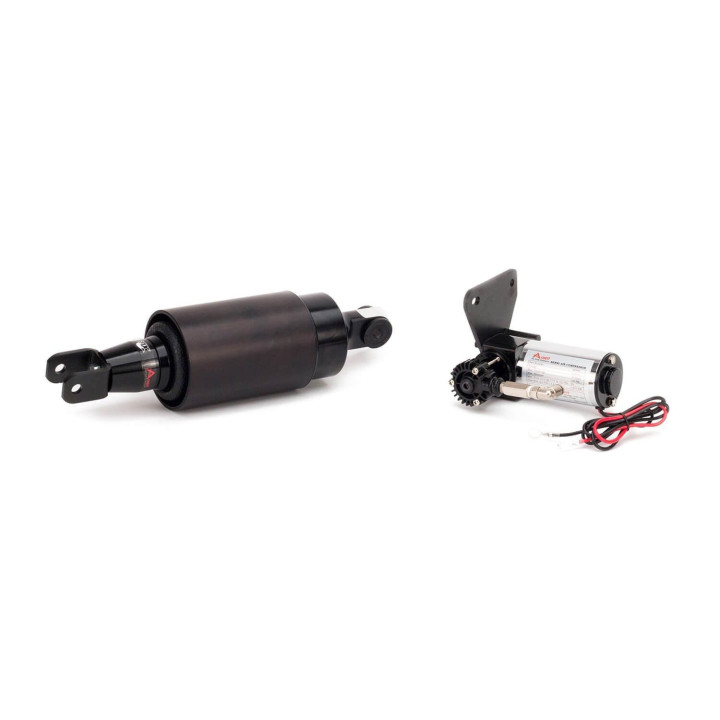

• 1 black shock absorber
• ViAIR compressor w/application-specific mounting bracket

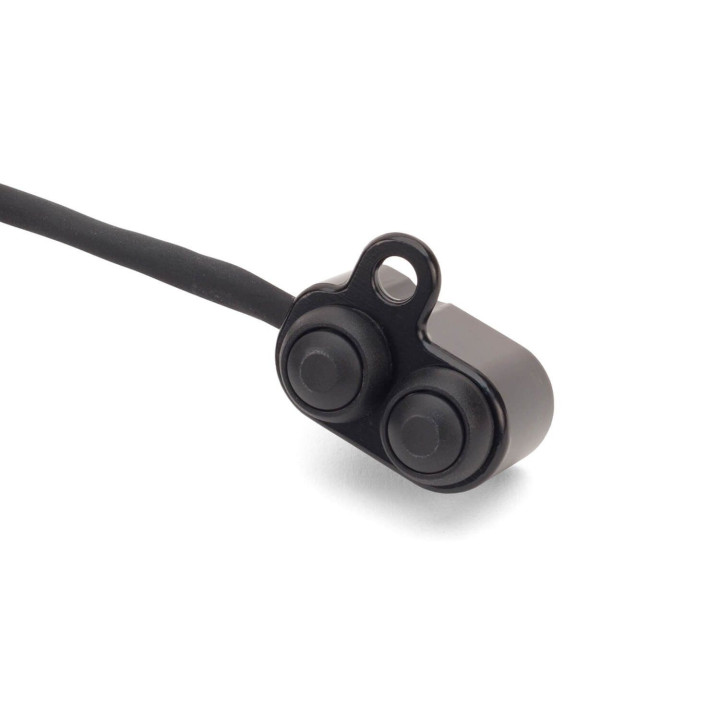

• Black handlebar-mounted inflation switch
• Air distribution valve w/air speed control muffler
• Fused wiring harness & relay assembly
• All necessary mounting hardware
• Nylon air line tubing
• Cable ties
• Detailed installation manual
