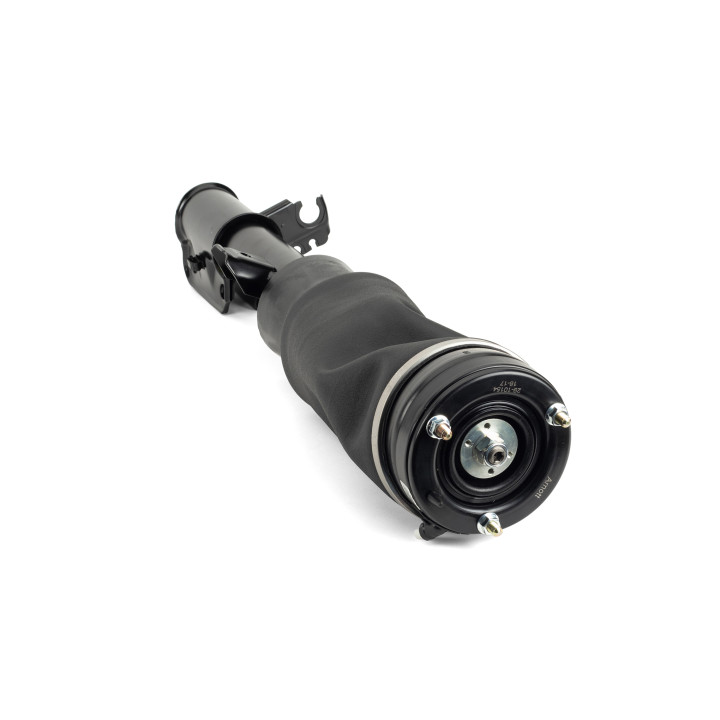

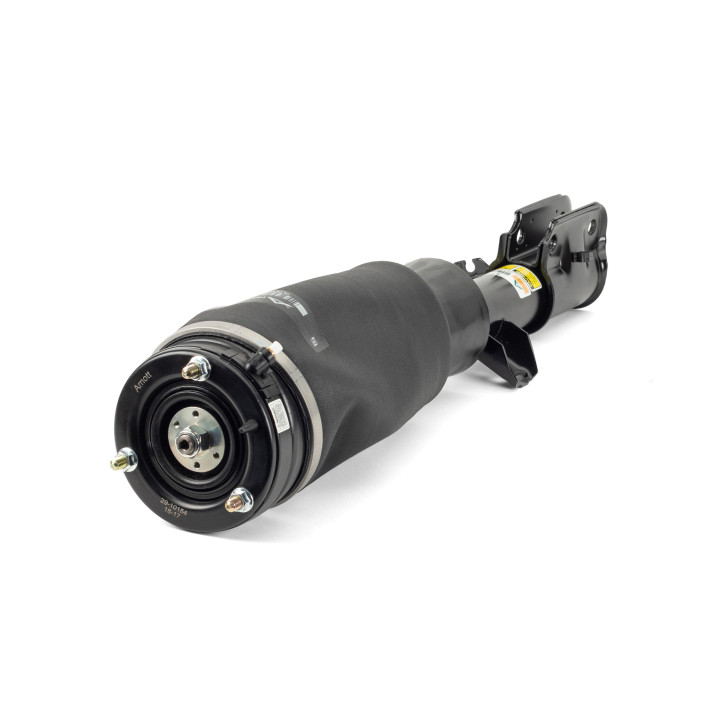

The Arnott AS-2798 is a new, not remanufactured, air strut for the front left of the Range Rover (L322). It has a new custom-made and tuned shock absorber valved to ride like the OE and a name brand multi-ply air spring bladder, and it is assembled in the USA. The strut has extra-heavy duty crimping rings, new seals, air fitting and a stamped steel top.
Fits
- Land Rover Range Rover 2010-2012
Features
- Tested in the USA
- Name Brand Multi-Ply Air Bladder
- Maintains Auto-Leveling Functionality
- Heavy-Duty Crimping Rings
- Replace in Pairs
Specifications
| Part number | AS-2798 |
|---|
| Adjustable compression | No |
|---|
| Air adjustable | Yes |
|---|
| Air ride suspension | Yes |
|---|
| Bearing plate included | Yes |
|---|
| Heavy-duty bladder crimping rings included | Yes |
|---|
| Body end measuring point | Center eye |
|---|
| Boot color | Black |
|---|
| Boot included | Yes |
|---|
| Coil-over springs included | N/A |
|---|
| Internal damper type | Hydraulic |
|---|
| Lower mount type | Bracket |
|---|
| Mounting hardware included | Yes |
|---|
| New or remanufactured | New |
|---|
| Progressive spring rate | Yes |
|---|
| Shock absorber rod end measuring point | Shoulder of stud |
|---|
| Spring-assisted shock | Yes |
|---|
| Spring isolators included | Yes |
|---|
| Spring rate type | Progressive |
|---|
| Spring seat included | No |
|---|
| Springs included | N/A |
|---|
| Upper mount type | Stud |
|---|
| Upper mounting isolator included | Yes |
|---|
OE numbers
Land Rover: 45-240690, LR012885, LR012886, LR032567
Good to know
- EAN: 0815710013956
- Shipping weight: 15.97 kg
Frequently asked questions
Which side does the AS-2798 fit?
The AS-2798 is an air strut for the front left.
Which cars does it fit?
The Range Rover (L322) 2010–2012 with continuous variable adaptive damping suspension (VDS). See the fitment list above for model and model years.
Is the strut new or remanufactured?
It is new, not remanufactured.
Should the struts be replaced in pairs?
Yes, Arnott states that the struts should be replaced in pairs. The strut maintains the auto-leveling functionality.
