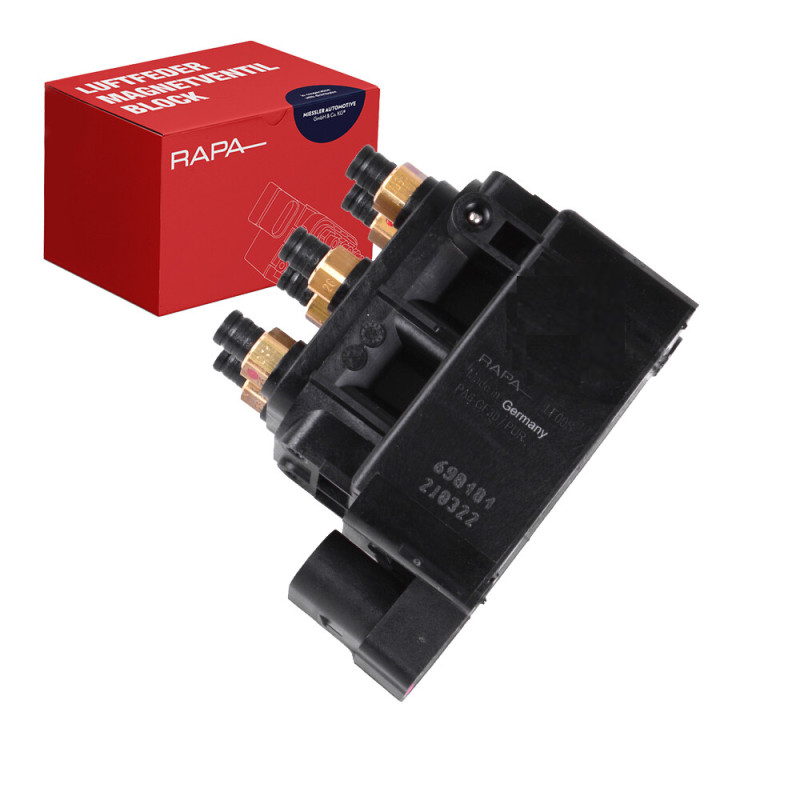

Air Suspension Valve Block Touareg II RAPA 7P0698014
Air Suspension valve block Touareg II RAPA 7P0698014
VW Touareg II (7P5, 7P6) 2010-2018
Valve replaced with the spare part numbers:
The vehicle suspension system is based on a combination of electronic level control and nitrogen 5 or CO2 filled air springs.
After replacement of any spare parts, such as compressor, air spring, valve and / or strut, the output pressure in the system MUST have 17 bar.
A compressor can only partially compensate for the pressure difference.
You MUST follow the appropriate car manufacturer's installation instructions.
If the appropriate car manufacturer's installation instructions and specifications are not followed correctly, your system will continue to show errors or will malfunction.
If our parts are damaged in the process if will void any warranty or guarantee.
Normally the complete emptying of the system is required under car manufacturer's installation instructions .
After replacement of the corresponding spare part, the system MUST be recharged with CO2 or nitrogen 5 in accordance with the requirements of the car manufacturer.
This can only be done with appropriate software and appropriate special tools.
After this procedure, you can start further steps, such as calibration of the vehicle's suspension leveling control system.
