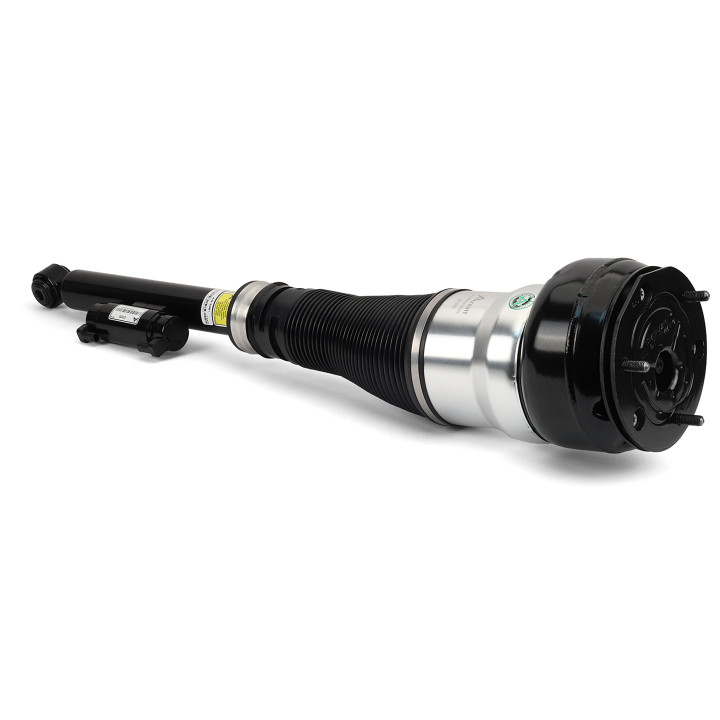

The Arnott AS-3361 is a completely remanufactured OE air suspension strut for the rear left of the 2014–2020 Mercedes-Benz S-Class (W222) and Maybach with AIRMATIC, with or without 4MATIC, excluding AMG. The strut is inspected, steam cleaned and media blasted to bare metal, and the damper is recharged with new high-performance shock oil. It has a new multi-ply rubber air sleeve from Continental ContiTech and is pre-assembled for easy installation.
Fits
- Mercedes-Benz Maybach S550 2017
- Mercedes-Benz Maybach S560 2018-2020
- Mercedes-Benz S400 2014-2015
- Mercedes-Benz S400L 2016-2018
- Mercedes-Benz S450 2018-2020
- Mercedes-Benz S450L 2019-2020
- Mercedes-Benz S500 2014-2016
- Mercedes-Benz S500L 2015, 2017-2018
- Mercedes-Benz S550 2014-2017
- Mercedes-Benz S550e 2015-2017
- Mercedes-Benz S560 2018-2020
- Mercedes-Benz S560L 2019-2020
- Mercedes-Benz S560e 2019-2020
Features
- Remanufactured and Tested in the USA
- Recharged Damper
- Pre-Assembled for Easy Installation
- Detailed Installation Manual Available
- Replace in Pairs
Specifications
| Part number | AS-3361 |
|---|
| Adjustable compression | No |
|---|
| Air adjustable | Yes |
|---|
| Air ride suspension | Yes |
|---|
| Bearing plate included | Yes |
|---|
| Heavy-duty bladder crimping rings included | Yes |
|---|
| Body end measuring point | Center eye |
|---|
| Boot color | Black |
|---|
| Boot included | Yes |
|---|
| Coil-over springs included | N/A |
|---|
| Internal damper type | Hydraulic |
|---|
| Lower mount type | Loop/eyelet |
|---|
| Mounting hardware included | Yes |
|---|
| New or remanufactured | Remanufactured |
|---|
| Progressive spring rate | Yes |
|---|
| Shock absorber rod end measuring point | Shoulder of stud |
|---|
| Spring-assisted shock | Yes |
|---|
| Spring isolators included | Yes |
|---|
| Spring rate type | Progressive |
|---|
| Spring seat included | No |
|---|
| Springs included | N/A |
|---|
| Upper mount type | Stud |
|---|
| Upper mounting isolator included | Yes |
|---|
OE numbers
Mercedes-Benz: 222320113880, 2223202900, 222320290080, 222320290089, 2223205313, 222320531380, 2223205901, 222320590180, 2223207313, 222320731380, 222320731389, A2223202900, A222320290080, A222320290089, A2223205313, A222320531380, A2223205901, A222320590180, A2223207313, A222320731380, A222320731389
Good to know
- EAN: 0815710019286
- Shipping weight: 11.43 kg
Frequently asked questions
Which side does the AS-3361 fit?
The AS-3361 is for the rear left. The matching strut for the rear right is Arnott AS-3360.
How is the strut remanufactured?
Worn components such as the piston, rod guides and seal pack are replaced, the damper is recharged with new high-performance shock oil and the strut is painted with corrosion resistant paint. The damper and coil are dyno and functionally tested. Arnott states that the struts should be replaced in pairs.
Which cars does it fit?
The 2014–2020 Mercedes-Benz S-Class (W222) and Maybach with AIRMATIC, with or without 4MATIC, excluding AMG. The strut is designed to work with the vehicle's auto leveling and OE damping functionality. See the fitment list above.
Which OE numbers does it correspond to?
Among others 2223202900, 222320290080, 222320290089.
