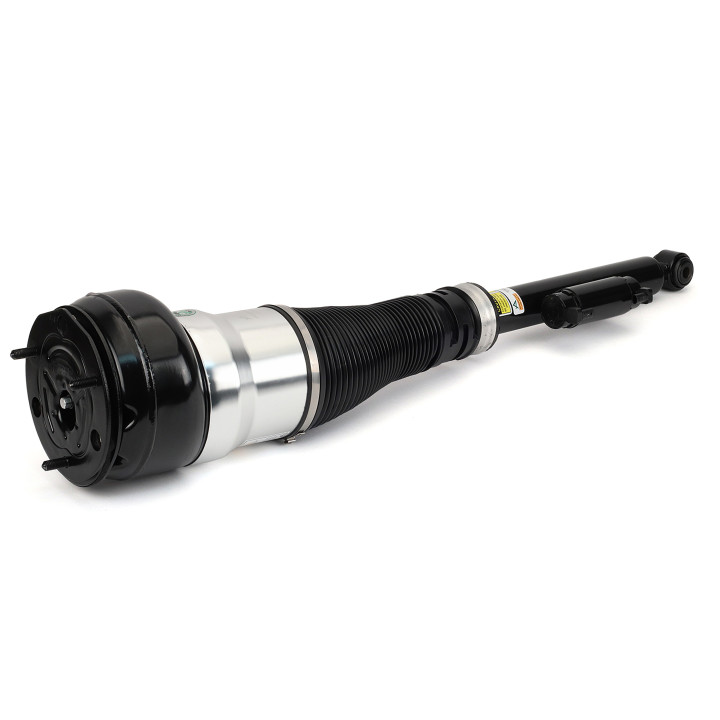

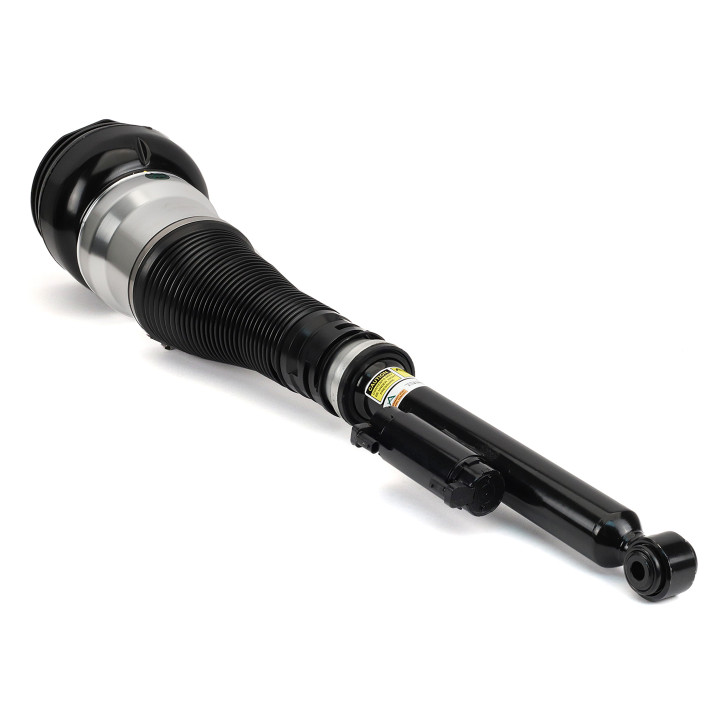

Arnott Reman Rear Rt Air Strut-13-20 MB S-Class/Maybach(W222)w/Airmatic; w-w/o 4Matic; w/o ABC;Ex AMG

Air Strut Mercedes S-Class Arnott AS-3360

Name: Air Strut Mercedes S-Class Arnott AS-3360
Brand: Arnott
SKU: AS-3360
Price: 1186.00 EUR
Availability: InStock

Arnott

€1,186

Tax included

in addition €232 deposit

Remanufactured OE rear right air strut for the 2014–2020 Mercedes-Benz S-Class (W222) with AIRMATIC. New ContiTech sleeve. Arnott AS-3360.

In stock at supplier – ships within 3–5 business days

The Arnott AS-3360 is a completely remanufactured OE air suspension strut for the rear right of the 2014–2020 Mercedes-Benz S-Class (W222) and Maybach with AIRMATIC, with or without 4MATIC, excluding AMG. The strut is inspected, steam cleaned and media blasted to bare metal, and the damper is recharged with new high-performance shock oil. It has a new multi-ply rubber air sleeve from Continental ContiTech and is pre-assembled for easy installation.

Fits

Mercedes-Benz Maybach S550 2017
Mercedes-Benz Maybach S560 2018-2020
Mercedes-Benz S400 2014-2015
Mercedes-Benz S400L 2016-2018
Mercedes-Benz S450 2018-2020
Mercedes-Benz S450L 2019-2020
Mercedes-Benz S500 2014-2016
Mercedes-Benz S500L 2015, 2017-2018
Mercedes-Benz S550 2014-2017
Mercedes-Benz S550e 2015-2017
Mercedes-Benz S560 2018-2020
Mercedes-Benz S560L 2019-2020
Mercedes-Benz S560e 2019-2020

Features

Remanufactured and Tested in the USA
Recharged Damper
Pre-Assembled for Easy Installation
Detailed Installation Manual Available
Replace in Pairs

Specifications

Part number	AS-3360
Adjustable compression	No
Air adjustable	Yes
Air ride suspension	Yes
Bearing plate included	Yes
Heavy-duty bladder crimping rings included	Yes
Body end measuring point	Center eye
Boot color	Black
Boot included	Yes
Coil-over springs included	N/A
Internal damper type	Hydraulic
Lower mount type	Loop/eyelet
Mounting hardware included	Yes
New or remanufactured	Remanufactured
Progressive spring rate	Yes
Shock absorber rod end measuring point	Shoulder of stud
Spring-assisted shock	Yes
Spring isolators included	Yes
Spring rate type	Progressive
Spring seat included	No
Springs included	N/A
Upper mount type	Stud
Upper mounting isolator included	Yes

OE numbers

Mercedes-Benz: 222320123880, 2223203000, 222320300080, 222320300089, 2223205213, 222320521380, 2223206001, 222320600180, 2223207413, 222320741380, 222320741389, A2223203000, A222320300080, A222320300089, A2223205213, A222320521380, A2223206001, A222320600180, A2223207413, A222320741380, A222320741389

Good to know

EAN: 0815710019279
Shipping weight: 11.43 kg

Frequently asked questions

Which side does the AS-3360 fit?

The AS-3360 is for the rear right. The matching strut for the rear left is Arnott AS-3361.

How is the strut remanufactured?

Worn components such as the piston, rod guides and seal pack are replaced, the damper is recharged with new high-performance shock oil and the strut is painted with corrosion resistant paint. The damper and coil are dyno and functionally tested. Arnott states that the struts should be replaced in pairs.

Which cars does it fit?

The 2014–2020 Mercedes-Benz S-Class (W222) and Maybach with AIRMATIC, with or without 4MATIC, excluding AMG. The strut is designed to work with the vehicle's auto leveling and OE damping functionality. See the fitment list above.

Which OE numbers does it correspond to?

Among others 2223203000, 222320300080, 222320300089.

Arnott Air Strut

Brand
Reference

AS-3360
UPC

815710019279
EAN13

0815710019279
MPN

AS-3360

OE Number

2223203000
222320300080
222320300089
2223205213
222320521380
2223206001
222320600180
2223207413
222320741380
222320741389
A2223203000
A222320300080
A222320300089
A2223205213
A222320521380
A2223206001
A222320600180
A2223207413
A222320741380
A222320741389
Produkttyp

Air strut
Position

Rear
Sida

Right
Remanufactured

Yes
